Hollow Cone
Hollow cone spray nozzles produce a round, low impact, hollow spray pattern.

Hollow cone patterns are achieved by introducing a swirling action to a stream of liquid by directing the flow around a swirl chamber (H series), or by using a 360° deflection ramp (like our YH series).

Hollow cone nozzles are often used for dust suppression and humidity control because of the small droplet sizes that they produce.

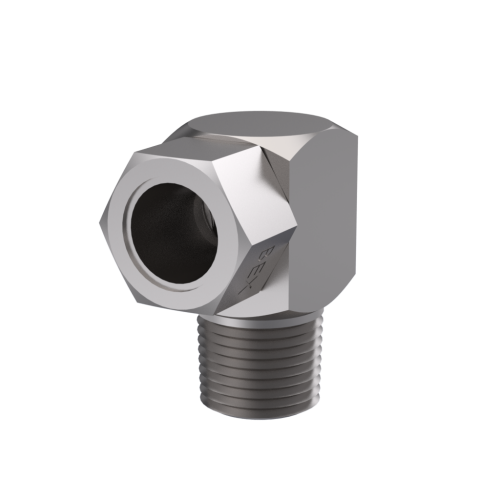

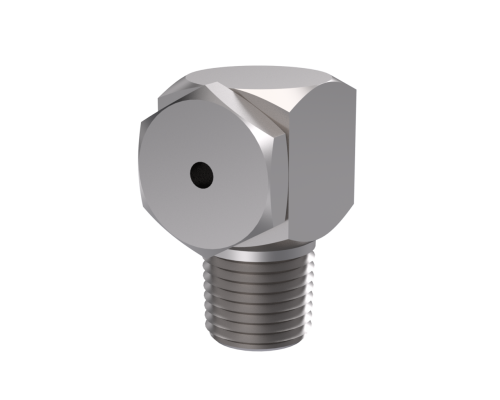

Hollow cone spray pattern, emerging at right angles to the centerline of the pipe connection.

Hollow cone spray pattern, similiar to the H series, but with wider spray angles.

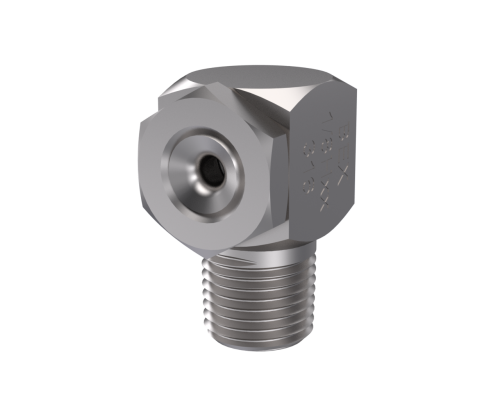

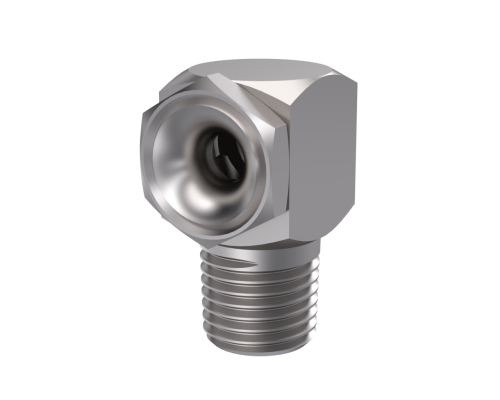

Hollow cone spray pattern designed to last longer and withstand wear.

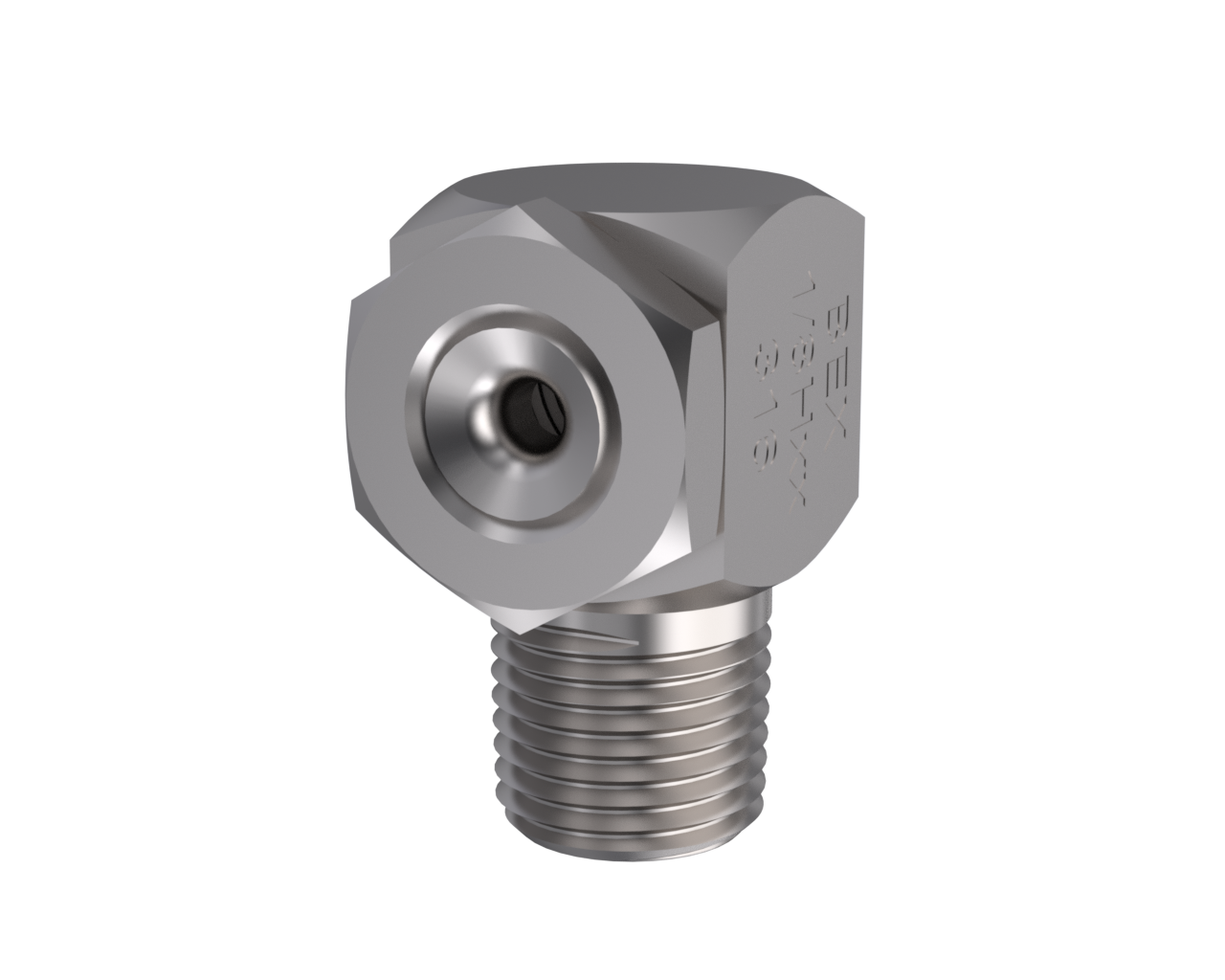

Hollow cone spray pattern, similar to the HW series, designed to last longer and withstand wear.

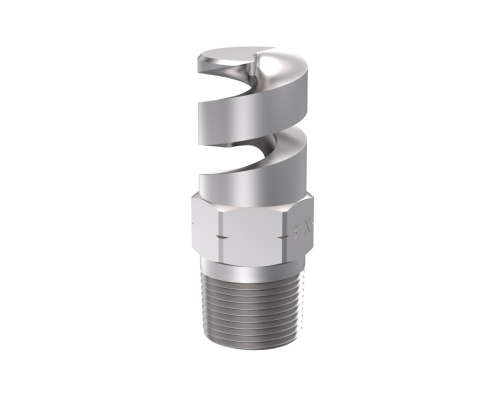

Hollow cone spray pattern with large flowrates and small droplet sizes. Uses an anti-clog twister design.

Hollow cone spray pattern for phosphating applications.

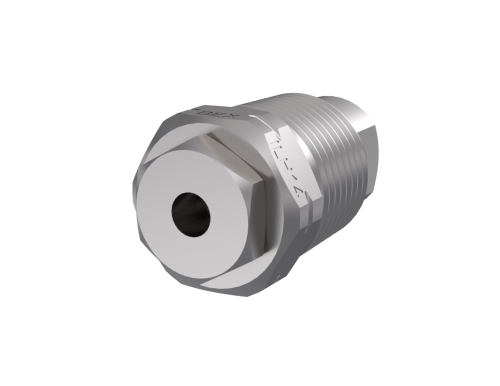

Produces a very evenly distributed hollow-cone spray which emerges through the center axis of the body.

High capacity hollow cone spray pattern with uniform distribution, Designed to reduce clogging.

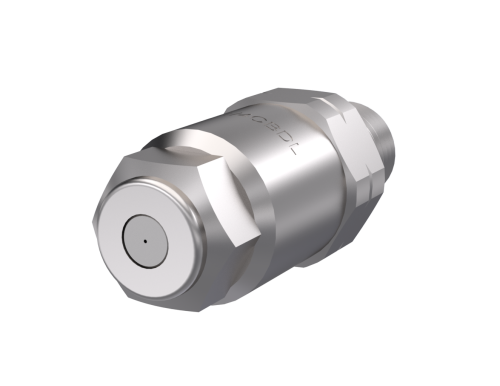

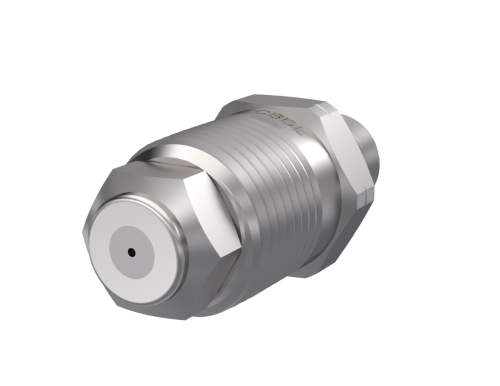

Two piece body with removable cap, orifice insert, core and core retainer.

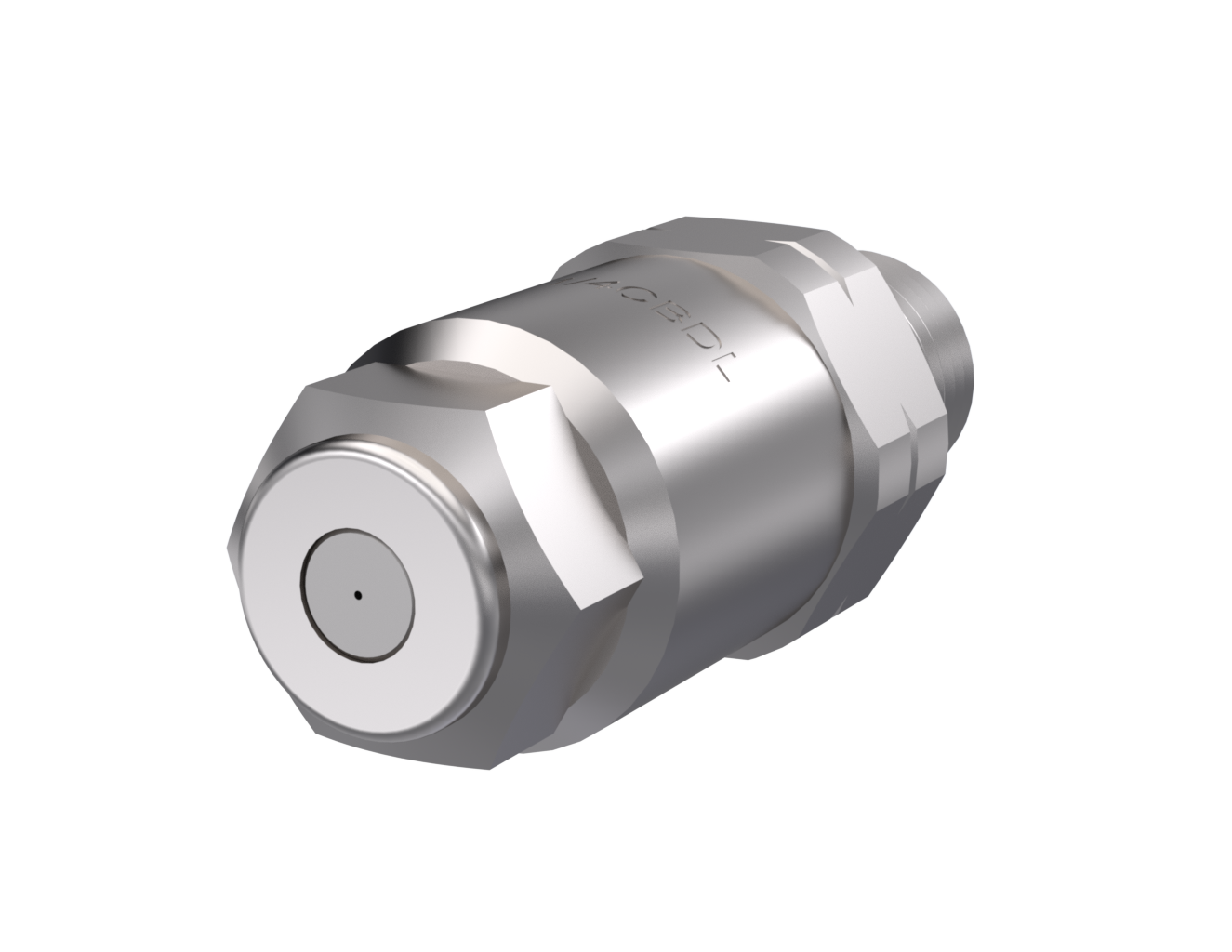

Two-piece body with removable cap and core.

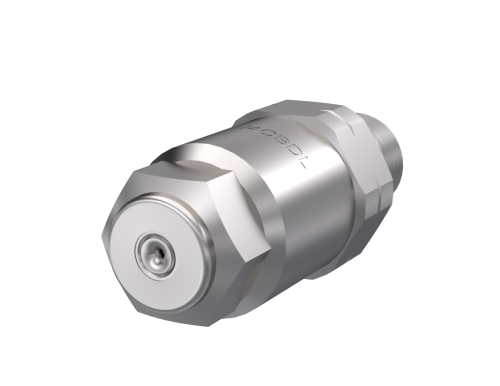

Two-piece body with removable cap, orifice, insert, core, core retainer and strainer.

Two-piece body with removable cap, orifice insert, core, core retainer and strainer.

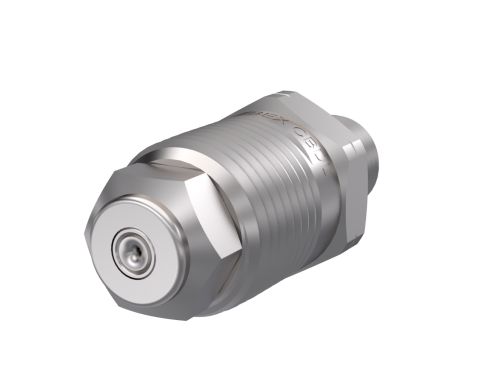

1/2” male thread wall mount body with removable cap, orifice insert, core, core retainer and strainer.

1/2” NPT male wallmount body with removable cap, core and strainer.

One-piece body with removable orifice insert, core and core retainer.

One-piece body with core.
