Full Cone
Full cone spray patterns produce a full round spray pattern with an even distribution. The spray is divided over a large area, resulting in a low impact rinse.

Full cone patterns are created in a few different methods, the most common one is by using an insert inside the nozzle to create a swirling action, as in our “S” series. Alternatively, a full cone pattern can also be achieved by deflecting a stream of water off a tapered spiral, like our YS series.

Full cone nozzles are mostly used in applications where a rinse of a stationary target is required, such as printed circuit board etching. Typical applications may also include washing, chemical processing, casting, scrubbing and pollution control.

Full cone spray pattern with uniform distribution. Spray angles range from 50°-90°

Full cone spray pattern with uniform distribution. Spray angles range from 100°-125°

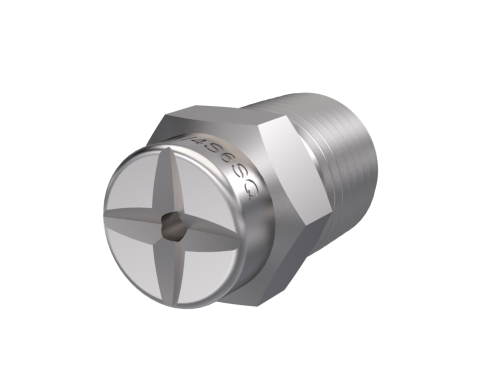

Full square spray pattern with uniform distribution.

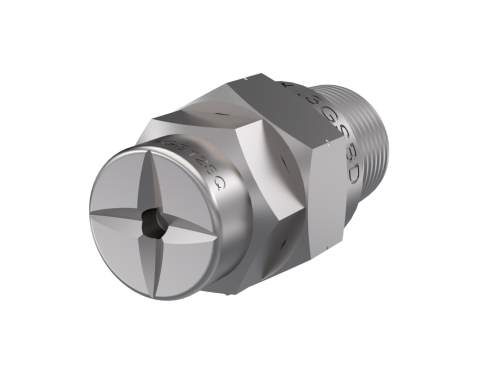

Wide angle, full square spray pattern with uniform distribution.

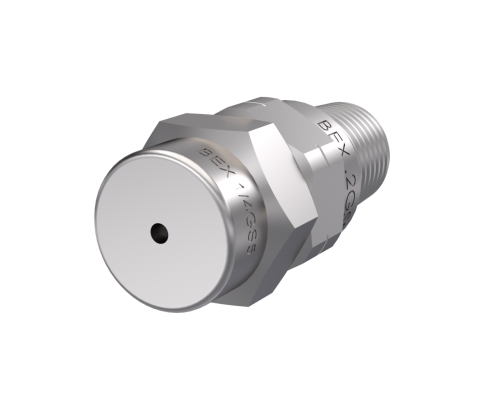

Full cone spray pattern with uniform distribution.

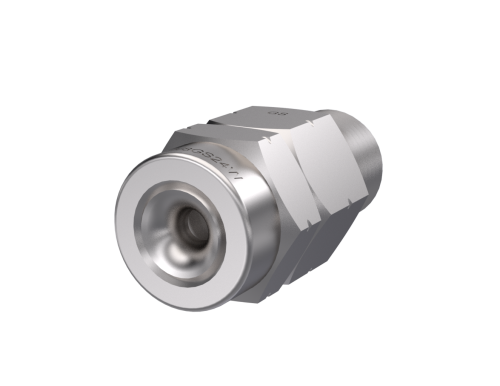

Wide angle, full cone spray pattern with uniform distribution.

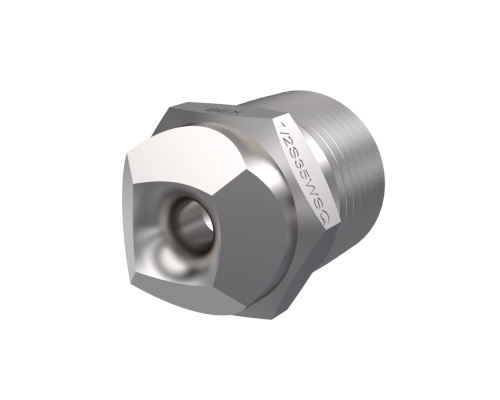

Full square spray pattern with uniform distribution.

Full cone spray pattern with larger flowrates and smaller droplet sizes. Durable, one-piece anti-clog design.

HGS

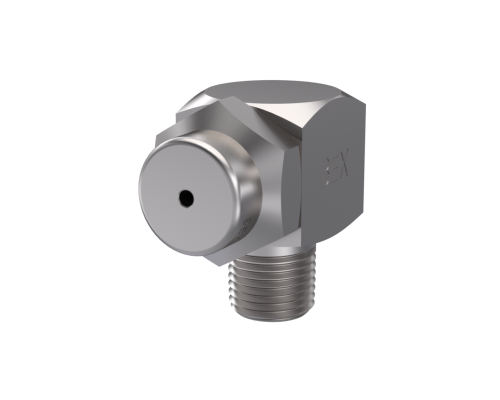

Full cone spray pattern with uniform distribution. Sprays at right angle to pipe.

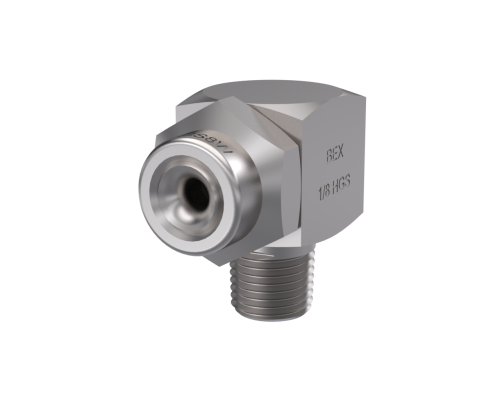

Wide angle, full cone spray pattern with uniform distribution. Sprays at right angle to pipe.

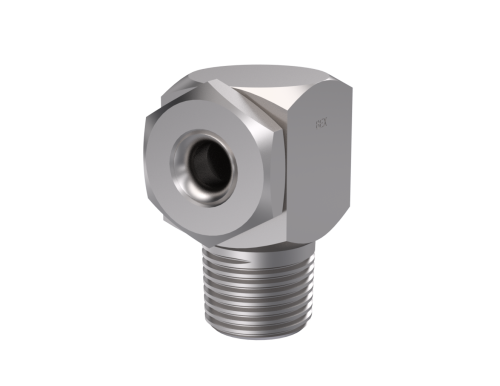

Projects a medium to coarse full-cone spray, perpendicular to inlet axis. Vaneless design prevents plugging.

Full cone spray pattern with distribution that is heavier in the middle.

Full cone spray pattern with uniform distribution, made from injection molded plastic.

Wide angle, full cone spray pattern with uniform distribution, made from injection molded plastic.

Full square spray pattern with uniform distribution, made from injection molded plastic.

A large investment cast nozzle with a full cone spray pattern, high flow capacities, and uniform distribution

PS

Full cone spray pattern with large flow capacities. Angle is 90°

PSW

Full cone spray pattern with large flow capacities. Angle is 120°

PSQ

Full square spray pattern with large flow capacities. Angle is 90°

Full square spray pattern with large flow capacities. Angle is 120°

30° spray angle at 40 PSI, larger droplet size, more impact than wider angle full cones.

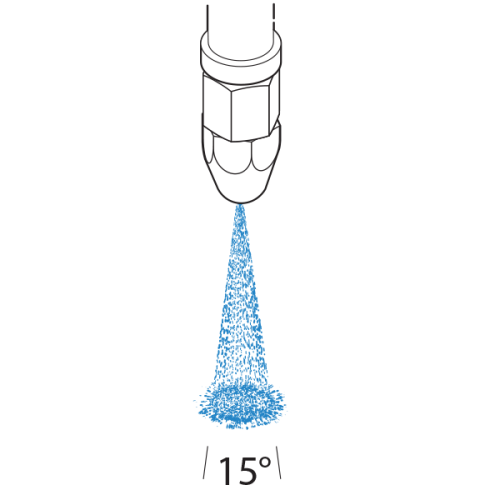

15° spray angle at 40 PSI, larger droplet size, more impact than wider angle full cones.

The full cone A-Series assembly uses ST tips. Designed as an all-in-one solution for low-flow applications.
