Stainless Steel Eductors

EDUCTOR PRINCIPLES

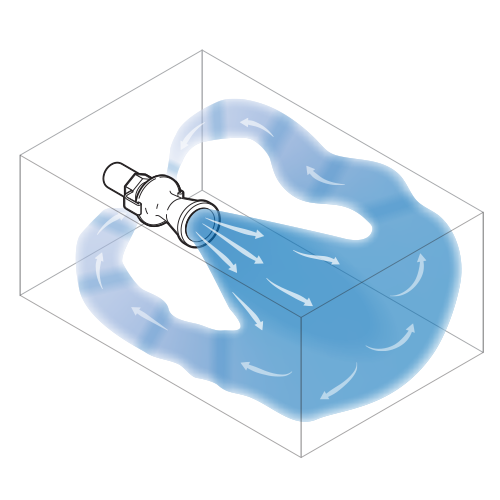

BEX eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution. The eductor will circulate four to five gallons of solution for each gallon pumped. BEX eductors are used for mixing chemicals, suspending solids, adjusting pH, “sweeping” debris or sludge toward a filter intake and many other useful applications.

CONSTRUCTION

Investment cast with CF8M (316) stainless steel. Other materials are available upon request

TYPICAL APPLICATIONS

  • Plating Tanks
  • Cleaning Tanks
  • Phosphating Tanks
  • Fertilizer Tanks
  • Pulp Tanks
  • Sludge Tanks
  • Anodizing Tanks
  • Cooling Towers
  • Decorative Fountains

STANDARD MATERIALS

  • 316SS

Capacity Table

Model #Maximum Free Passage
(mm)
Capacities
(LPM)
0.7
bar
1.0
bar
1.4
bar
1.7
bar
2.1
bar
2.4
bar
2.7
bar
3.4
bar
T0M7.328.634404550535663
T2M9.8516273808995101113
T22M10.761738796106114121135
T3M12.28096113125139148157176
T4M15.5126150178196218233247277
T519.8210251297327363388412462
T630.24805746797498328909441,059
