Mini Plastic Eductors

EDUCTOR PRINCIPLES

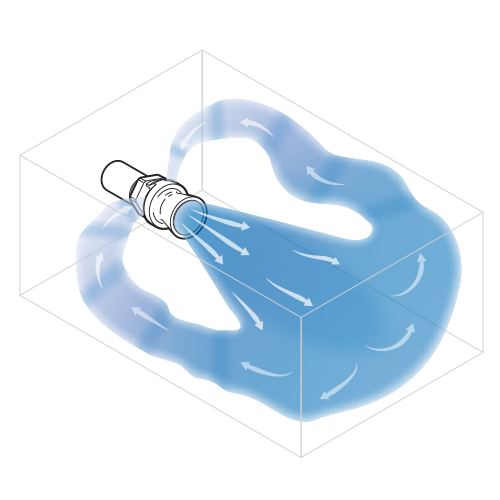

BEX eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution. The eductor will circulate four to five gallons of solution for each gallon pumped. BEX eductors are used for mixing chemicals, suspending solids, adjusting pH, “sweeping” debris or sludge toward a filter intake and many other useful applications.

CONSTRUCTION

Injection molded with either glass-filled polypropylene or PVDF. Designed with a 1/4 inch male thread.

TYPICAL APPLICATIONS

  • Plating Tanks
  • Cleaning Tanks
  • Phosphating Tanks
  • E-coat Tanks
  • Fertilizer Tanks
  • Pulp Tanks
  • Sludge Tanks
  • Paint Booths
  • Anodizing Tanks
  • Cooling Towers
  • Decorative Fountains

Standard Materials

  • POLYPROPYLENE (LL) -Excellent chemical and corrosion resistance. Useful up to 175°F.
  • PVDF (KK) - Excellent durability and abrasion resistance and is inert to most chemicals. Useful up to 300°F.

Capacity Table

Model #Maximum Free Passage
(mm)
ColorCapacities
(LPM)
0.7
bar
1.0
bar
1.4
bar
1.7
bar
2.1
bar
2.4
bar
2.7
bar
3.4
bar
TMMP61.5Red1.181.401.671.842.052.192.322.61
TMMP112.0Green2.102.502.973.33.63.94.14.6
TMMP182.5Blue3.44.14.95.35.96.46.77.6
TMMP263.0Yellow5.05.97.07.78.69.29.710.9
