Regular Size Molded Eductors

EDUCTOR PRINCIPLES

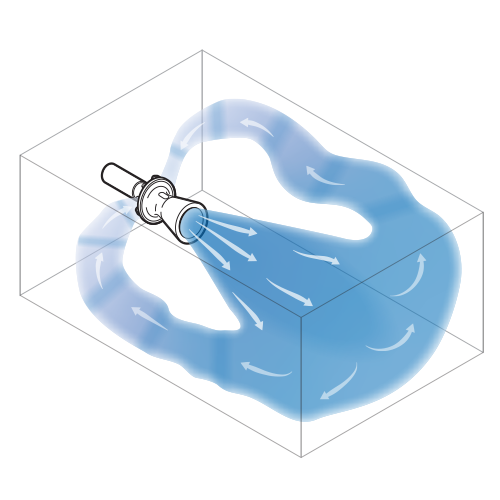

BEX eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution. The eductor will circulate four to five gallons of solution for each gallon pumped. BEX eductors are used for mixing chemicals, suspending solids, adjusting pH, “sweeping” debris or sludge toward a filter intake and many other useful applications.

CONSTRUCTION

Injection molded with either glass-filled polypropylene or PVDF.

TYPICAL APPLICATIONS

  • Plating Tanks
  • Cleaning Tanks
  • Phosphating Tanks
  • E-coat Tanks
  • Fertilizer Tanks
  • Pulp Tanks
  • Sludge Tanks
  • Paint Booths
  • Anodizing Tanks
  • Cooling Towers
  • Decorative Fountains

Standard Materials

  • POLYPROPYLENE (LL) -Excellent chemical and corrosion resistance. Useful up to 175°F.
  • PVDF (KK) - Excellent durability and abrasion resistance and is inert to most chemicals. Useful up to 300°F.

Capacity Table

Model #Maximum Free Passage
(mm)
Capacities at Various Pressures
(LPM)
0.7
bar
1.0
bar
1.4
bar
1.7
bar
2.1
bar
2.4
bar
2.7
bar
3.4
bar
T00MP4.812.214.617.319.021.122.624.026.9
T0MP7.328.634404550535663
T2MP9.8516273808995101113
T3MP12.28096113125139148157176
T4MP15.5126150178196218233247277
