Cast Iron Eductors

EDUCTOR PRINCIPLES

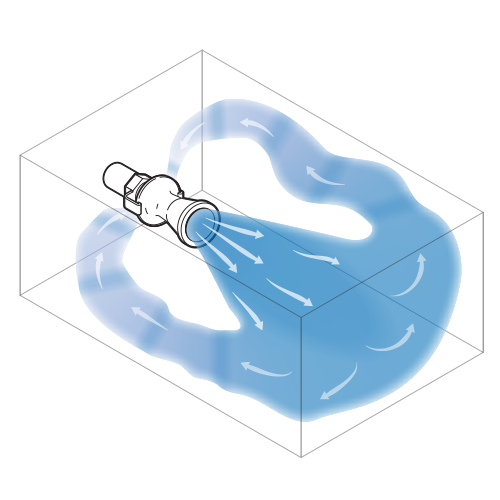

BEX eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution. The eductor will circulate four to five gallons of solution for each gallon pumped. BEX eductors are used for mixing chemicals, suspending solids, adjusting pH, “sweeping” debris or sludge toward a filter intake and many other useful applications.

CONSTRUCTION

Investment cast with CF8M (316) stainless steel. Other materials are available upon request

TYPICAL APPLICATIONS

  • Plating Tanks
  • Cleaning Tanks
  • Phosphating Tanks
  • Fertilizer Tanks
  • Pulp Tanks
  • Sludge Tanks
  • Anodizing Tanks
  • Cooling Towers
  • Decorative Fountains

STANDARD MATERIALS

  • Cast Iron

The capacity table provides the flow of water through the nozzle orifice. To determine the discharge, multiply this value by five (5).

Capacity Table

Model #Maximum Free Passage
(inches)
Capacities at Various Pressures
(USGPM)
10
psi
15
psi
20
psi
25
psi
30
psi
35
psi
40
psi
50
psi
T40.6123340475257626674
T50.7815567788795103110123
T61.188126154178199218236252282
